H05V3-U  Application Scope:

Internal wiring for switchboard of electrical electric appliance & wiring board of power distribution unit, connecting switch cubicle of electronics and electrical equipment, At the same time for power and lighting system, ?xed installation with exposed and embedded conduit, Low temperature environment.

H05V3-U Structure:

Conductor: Single bare copper or tinned copper in accordance with IEC 60228 VDE 0295

Insulation: PVC/TI3 in accordance with DIN VDE 0281

Color ID: in accordance with HD 402 Standard

Application Standard: HD 21.3 S3、VDE-0281 Part-3、CE Low Voltage Diretive、73/23/EEC and 93/68/EEC

H05V3-U Features & Conformity:

Features: solid single core cable, easy-peeling, easy-cut, convenient installation.accordance with eu coordination standard

Certi?cation: RoHS CE

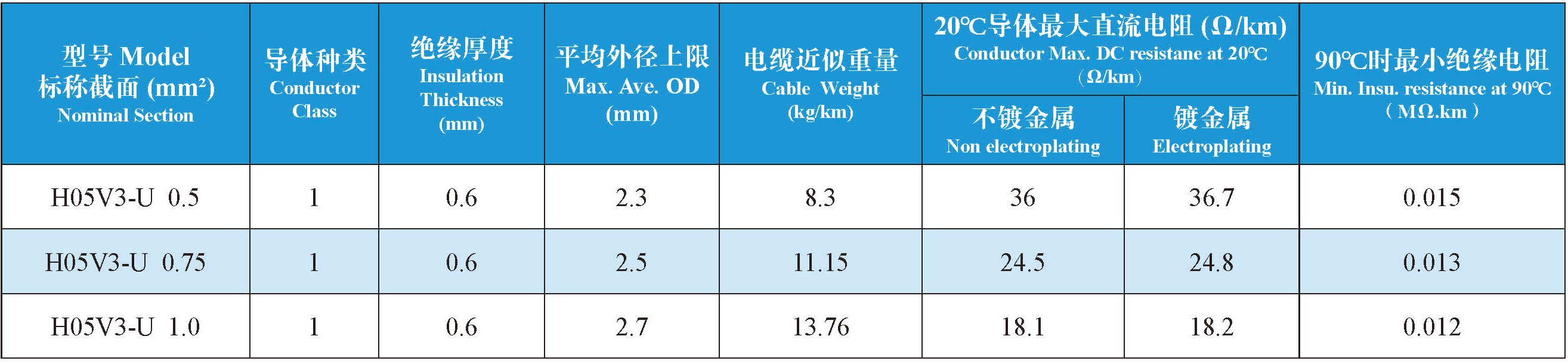

H05V3-U Technical Parameters:

Rated Voltage: 450/750V

Test Voltage: 4000V in accordance with DIN VDE 0281 part 2 HD21.2

Min. bending Radius

Fixed Installation: 12.5×D (Cable OD)

Movable Installation: 12.5×D (Cable OD)

Temperature Range

Fixed Installation: -20℃ To +90℃

Movable Installation:  -5℃ To +90℃
